In industrial coatings, solvent choice influences much more than simple dilution, because it directly affects resin compatibility, viscosity control, wetting, flow, leveling, drying behavior, and the final appearance of the coating film. When the solvent system is not properly matched to the formulation, common problems such as poor flow, weak leveling, inconsistent film build, and uneven surface appearance can occur, reducing both finish quality and production stability. In this context, Tripropylene Glycol Normal Butyl Ether (TPNB) stands out as a practical solvent choice for demanding coating systems. It is known for its very slow evaporation, strong surface-tension-lowering ability, and high polymer solvency, making it especially suitable for formulations that require longer open time and more controlled film development. With these characteristics, TPNB can help improve application behavior and support more consistent performance in industrial coating systems.
Tripropylene Glycol Normal Butyl Ether, also identified by Dow as Tripropylene glycol mono n-butyl ether, is a P-series glycol ether used in cleaners, coatings, inks, adhesives, resins, and related industrial applications. Dow’s typical-property listing gives TPNB a CAS number of 55934-93-5, a boiling point of 274°C, a molecular weight of 248.4 g/mol, and a flash point of 126°C, which together reflect a high-boiling solvent designed for formulations where slower evaporation and longer residence time are valuable. These properties make TPNB especially relevant in industrial coatings that need stable application behavior instead of rapid solvent flash-off.
Dow reports that TPNB has surface tension of 29.7 dynes/cm at 1% actives and vapor pressure of 0.002 mmHg at 20°C, along with viscosity of 7 cP at 25°C and water solubility of 4.5 wt% at 25°C. In practical terms, this means TPNB combines low volatility with useful wetting behavior and strong affinity for organic phases, making it suitable for formulations that require high polymer solvency and more working time on the substrate. In coating applications, those features help explain why TPNB is often selected when formulators want smoother spreading, better leveling, and a more controlled path toward film formation.
One of the most valuable features of Tripropylene Glycol Normal Butyl Ether / TPNB is its surface-tension-lowering ability. Good wetting is essential in industrial coatings because the liquid film must spread evenly across the substrate before drying. When wetting is inadequate, coating films can show poor edge coverage, uneven appearance, or localized defects. Dow’s description of TPNB as having outstanding surface-tension-lowering ability indicates that it can help coatings cover surfaces more uniformly, which supports smoother film development and better finish consistency.
Dow explicitly describes TPNB as very slow-evaporating, with an evaporation rate of 0.0004 relative to n-butyl acetate. In coating practice, a slower-evaporating solvent can give the formulation more open time, allowing the liquid film to level more fully before the solvent leaves the system. This can be especially helpful in industrial coatings where appearance depends on the coating’s ability to relax, spread, and minimize application marks before drying. For systems that need longer residence time rather than quick flash-off, TPNB offers a useful balance of solvency and controlled evaporation.
Dow states that TPNB is ideal where high polymer solvency is required, which is one of the clearest reasons it is useful in industrial coatings. Resin-rich systems depend on solvents that can maintain compatibility and support stable formulation behavior during manufacturing, storage, and application. When resin solvency is insufficient, formulators may encounter haze, instability, or poor application response. TPNB helps address that need by acting as a strong solvent phase for formulations that require reliable polymer interaction and consistent processing behavior.
Because TPNB combines slow evaporation with surface-tension reduction, it can support smoother coating flow and better leveling on the substrate. These effects matter in industrial coatings where the visual quality of the finished film is closely tied to how the coating behaves immediately after application. A solvent that remains in the film longer can help reduce surface irregularities, while improved wetting can support more even spread. As a result, TPNB is especially useful in formulations that target uniform appearance, controlled film build, and fewer visible defects.
TPNB is suitable for coating formulation and application across industrial, automotive, and architectural coatings, and is also used as a coalescent in water-borne architectural and industrial coatings. That combination suggests the solvent is not limited to a narrow niche, but can support a range of coating technologies where extended residence time, strong solvency, and controlled film formation are required. This breadth is one reason TPNB remains a practical choice for industrial formulators working across different resin systems and end uses.
Property | Typical value | Why it matters in industrial coatings |
Chemical name | Tripropylene glycol mono n-butyl ether | Standard industry identification for TPNB |
CAS number | 55934-93-5 | Useful for sourcing and technical documentation |
Boiling point | 274°C | Supports slower evaporation and longer residence time |
Vapor pressure at 20°C | 0.002 mmHg | Indicates very low volatility in use |
Evaporation rate (n-BA=1) | 0.0004 | Helps explain extended open time and leveling support |
Surface tension | 29.7 dynes/cm | Relevant to wetting and even coating spread |
Viscosity at 25°C | 7 cP | Supports manageable handling in liquid formulations |
Water solubility at 25°C | 4.5 wt% | Shows limited but useful water compatibility in mixed systems |
TPNB is used in coatings, inks, adhesives, resins, and industrial, automotive, and architectural coating applications. In practical coating work, that makes it relevant to maintenance coatings, protective metal coatings, industrial enamels, wood finishes, and mixed-system coatings that need stronger solvency and extended open time. Its use as a coalescent in water-borne architectural and industrial coatings also supports its relevance where coalescence and film formation are important alongside solvent power.
Even with its strong performance profile, Tripropylene Glycol Normal Butyl Ether (TPNB) should be evaluated as part of the full formulation. Formulators need to consider resin compatibility, additive balance, required open time, target drying speed, substrate type, and the desired tradeoff between finish quality and production speed.
Because TPNB is hydrophobic, very slow-evaporating, and only partly water compatible, its best use depends on how the complete system is designed rather than on any single property in isolation. The right formulation must balance wetting, leveling, film formation, and production efficiency according to the actual application requirements.
For this reason, lab evaluation and production-scale testing are essential before finalizing use levels in an industrial coating. Practical testing helps determine whether TPNB provides the right balance of solvency, open time, drying behavior, and final film quality in the target system.
TPNB can function as both, depending on the system. It is recognized as a solvent with coalescing and coupling benefits, and is also used as a coalescent in water-borne architectural and industrial coatings. In practice, its role depends on the rest of the formulation and the performance target.
Low vapor pressure means the solvent evaporates more slowly under normal conditions. In coatings, that can provide longer residence time in the wet film, which may improve flow, leveling, and uniform film development before drying. Dow lists TPNB’s vapor pressure at 0.002 mmHg at 20°C, which is consistent with that slow-evaporating behavior.
Yes, but typically as part of a broader formulation strategy rather than as a fully water-soluble solvent. TPNB has water solubility of approximately 4.5 wt% at 25°C and is used as a coalescent in water-borne architectural and industrial coatings, which suggests it can be useful where controlled coalescence and film formation are needed in mixed or water-borne systems.
The most relevant properties are its high polymer solvency, very slow evaporation, and outstanding surface-tension-lowering ability. Together, these properties can help reduce defects linked to poor wetting, insufficient leveling, and uneven film development in industrial coatings.

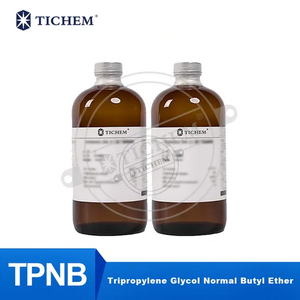

Tripropylene Glycol Normal Butyl Ether (TPNB) is a valuable solvent for industrial coatings because it combines high polymer solvency, very slow evaporation, low vapor pressure, and strong surface-tension-lowering ability in one formulation tool. These characteristics make it especially useful in coating systems that need longer open time, more reliable wetting, smoother leveling, and stronger support for uniform film formation. Shanghai Tichem Industrial Co., Ltd. offers Tripropylene Glycol Normal Butyl Ether (TPNB) for water-borne architectural and industrial coatings. With its balanced performance profile, TPNB is well aligned with the needs of modern industrial coating development, helping connect formulation stability with high-quality finish performance.
